RD530m | SD 6.1 | microSD Card

Buy Now
Sales Inquiry
Product Brief

SMART’s high-capacity RD530m industrial microSD Memory Cards are fully microSD UHS-I SDR 104 compliant. The RD530m microSD Cards are offered in 3D TLC NAND Flash, available in capacities from 64GB to 128GB. They are specifically designed to meet strict industrial operating and environmental requirements.

Incorporating onboard error detection and correction algorithms, and static and dynamic wear-leveling techniques, SMART’s RD530m microSD Cards ensure years of reliable operation over a product’s life.

Explore our full range ofmicroSDproducts,

Request Datasheet
Request Sample
Downloads

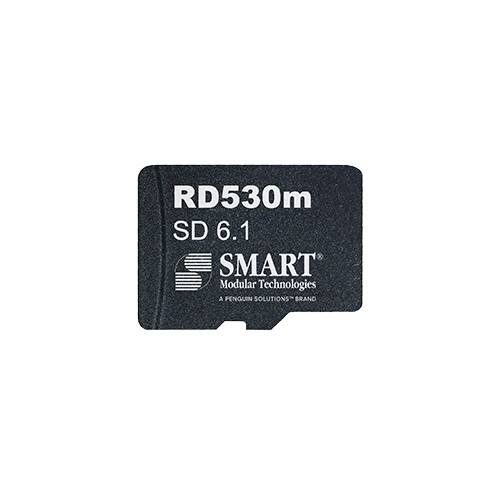

RD530m | SD 6.1 | microSD Card product image
No items found.
RD530m | SD 6.1 | microSD Card product image
No items found.

Ordering Information

Buy Now
Sales Inquiry

Part Number

Capacity

Note

SV9UD128GPHKFTCD1
128GB
C-Temp (0˚C to +70˚C)
SV9UD064GPHKFTCD1
64GB
C-Temp (0˚C to +70˚C)

Product Details

Buy Now
Sales Inquiry

Essentials

Product Series
RD530
NAND Flash Technology
3D TLC
Interface
SD 6.1

Performance

Sequential Read (maximum)
Up to 100MB/s
Sequential Write (maximum)
Up to 90MB/s
Capacities
64GB 128GB

Reliability

TBW
64GB: 175TBW 128GB: 350TBW (JEDEC® Sequential Workload)
MTBF
> 3,000,000 hours

Environmental

Shock
Plus with Half-Sine, 500G/2ms. 6 faces, 5 times/face
Vibration
Displacement: 20-80Hz/1.52mm. Acceleration: 80-2000HZ/20G. 30mins/axis.
Operating Temperature
C-temp: 0℃ to +70℃
Storage Temperature
-40℃ to +85℃
Humidity
40℃/93%RH@500hrs

Physical

Length
15mm
Width
11mm
Height
1mm

Technologies

Buy Now
Sales Inquiry
Advanced Error Detection & Correction
Advanced Error Detection & Correction

SMART’s Advanced Error Detection & Correction technology reinforces the ECC (Error Code Correction) engine and utilizes RAID (Redundant Array of Independent Disks) mechanism. Data is reconstructed by the prior stored parity in other pages. The recovered data will be stored in a new block, and the prior stored block will be refreshed.

Wear-Leveling
Wear-Leveling

Wear-Leveling refers to the practice of ensuring certain NAND blocks aren’t written and erased more often than others. By preventing the overuse of particular blocks which could lead to device failure or data loss, Wear-Leveling therefore improves the life expectancy and endurance of Flash products.

Garbage Collection
Garbage Collection

Flash-based storage devices are different in the way they deal with previously deleted data compared to traditional disks. Data must be erased first before new data can be written to the same block in SSDs. Garbage Collection copies in-use data to a new block, and then deletes all data from the old one.

TRIM Command
TRIM Command

TRIM is a command with the help of which the operating system can tell the SSD which blocks are no longer needed and can be deleted, or are marked as free for rewriting. With the TRIM command, it not only reduces the Write Amplifier Factor (WAF) but also boost the data access speeds.

Solutions

Buy Now
Sales Inquiry

Use of digital and video monitoring has expanded by leaps and bounds, and has become more sophisticated for transmitting digital signals. Monitoring systems are now expected to provide megapixel quality on a 24/7 basis, whether it’s for safety, personal or business protection, crime prevention, or for other types of content analysis such as facial analysis and streaming data. When not transmitting recorded images by digital signal, the surveillance system in the analog setting functions as a monitoring tool for safety concerns. In either mode of operation, SMART Modular offers a variety of storage solutions for high-performance monitoring needs.

Product Family Overview

Data flow rendering
