M400 | SATA | 2.5" SSD

Buy Now
Sales Inquiry
Product Brief

SMART Modular’s M400 SATA 2.5" SSDs are designed for demanding enterprise and industrial applications including servers, networking, and storage systems. It supports AES-256 hardware encryption and ATA security features as a Self-Encrypting Drive (SED), and integrates seamlessly into host systems without BIOS or driver modifications.

Built with Single Event Upset (SEU) protection for enhanced data integrity, the M400 helps safeguard against data corruption caused by radiation or voltage fluctuations in harsh environments. It also supports SMART’s NVMsentry™ firmware customization services—offering tailored features to meet specific customer requirements in reliability-critical deployments.

In addition, M400 SATA 2.5” SSDs incorporate SMART’s SafeDATA™ power-loss, data-protection technology for graceful handling of power fluctuations and sudden power loss events.

Request Datasheet
Request Sample
Downloads

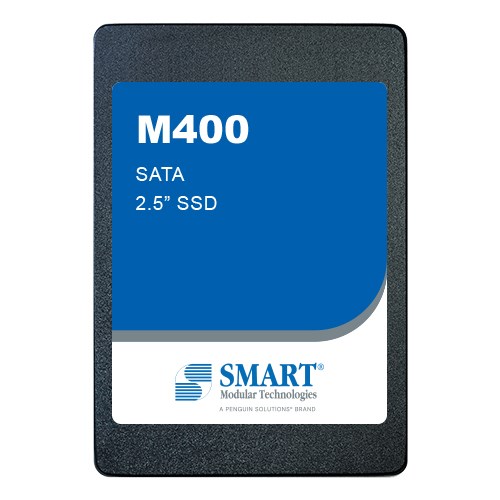

M400 | SATA | 2.5" SSD product image
No items found.
M400 | SATA | 2.5" SSD product image
No items found.

Ordering Information

Buy Now
Sales Inquiry

Part Number

Capacity

Note

SRS251920FCM2AJ1
1920GB
C-Temp / SEU Mitigation
SRS251920FIM2AJ1
1920GB
I-Temp / SEU Mitigation
SRS25960GFCM2AJ1
960GB
C-Temp / SEU Mitigation
SRS25960GFIM2AJ1
960GB
I-Temp / SEU Mitigation
SRS25480GFCM2AJ1
480GB
C-Temp / SEU Mitigation
SRS25480GFIM2AJ1
480GB
I-Temp / SEU Mitigation
SRS25240GFCM2AJ1
240GB
C-Temp / SEU Mitigation
SRS25240GFIM2AJ1
240GB
I-Temp / SEU Mitigation
SRS251920F1M2AJ1
1920GB
C-Temp / SafeDATA (pFail) / SEU Mitigation
SRS251920F2M2AJ1
1920GB
I-Temp / SafeDATA (pFail) / SEU Mitigation
SRS25960GF1M2AJ1
960GB
C-Temp / SafeDATA (pFail) / SEU Mitigation
SRS25960GF2M2AJ1
960GB
I-Temp / SafeDATA (pFail) / SEU Mitigation
SRS25480GF1M2AJ1
480GB
C-Temp / SafeDATA (pFail) / SEU Mitigation
SRS25480GF2M2AJ1
480GB
I-Temp / SafeDATA (pFail) / SEU Mitigation
SRS25240GF1M2AJ1
240GB
C-Temp / SafeDATA (pFail) / SEU Mitigation
SRS25240GF2M2AJ1
240GB
I-Temp / SafeDATA (pFail) / SEU Mitigation

Product Details

Buy Now
Sales Inquiry

Essentials

Product Series
M400
NAND Flash Technology
eTLC
Interface
SATA 3.0 6Gb/s

Performance

Sequential Read (maximum)
Up to 540MB/s
Sequential Write (maximum)
Up to 520MB/s
4K Random Read (maximum)
Up to 79K IOPS
4K Random Write (maximum)
Up to 74K IOPS
Capacities
240GB 480GB 960GB 1920GB

Reliability

TBW
240GB: 471TBW 480GB: 920TBW 960GB: 2114TBW 1920GB: 4237TBW (JEDEC® Enterprise Workload)
MTBF
> 2,000,000 hours
DWPD
1

Environmental

Shock
1500G half-sine, 0.5 msec, 1 shock along each axis, X, Y, Z in each direction
Vibration
20G 80-2000Hz, 1.52mm 20-80Hz, 3 axis
Operating temperature
C-temp: 0℃ to +70℃ I-temp: -40℃ to +85℃
Storage Temperature
-40℃ to +85℃
Humidity
40℃, Operation: 90% RH, Storage: 93% RH

Physical

Length
100.45mm
Width
69.85mm
Height
7mm

Technologies

Buy Now
Sales Inquiry
Advanced Firmware for Customized Requests
Advanced Firmware for Customized Requests

SMART proprietary firmware architecture forms the basis for innovative and cost-effective SSD products to meet customers’ unique needs. NVMSentry provides the full package of advanced firmware features for specific customization requirements and optimized product performance.

SafeDATA™
SafeDATA™

SafeDATA technology combines unique power loss detection and hold-up circuitries with an advanced controller firmware algorithm to flush in-flight data from volatile cache to NAND Flash memory in order to safeguard data against corruption and/or loss during the sudden power loss.

SEU Mitigation
SEU Mitigation

A Single Event Upset (SEU) is an inadvertent change in bit status occurring in a digital system when a high energy neutron or alpha particle randomly strikes causing a memory bit to flip states. These high-energy particles can originate from terrestrial or extra-terrestrial sources such as cosmic rays.

Advanced Error Detection & Correction
Advanced Error Detection & Correction

SMART’s Advanced Error Detection & Correction technology reinforces the ECC (Error Code Correction) engine and utilizes RAID (Redundant Array of Independent Disks) mechanism. Data is reconstructed by the prior stored parity in other pages. The recovered data will be stored in a new block, and the prior stored block will be refreshed.

End-to-End Data Protection
End-to-End Data Protection

End-to-End Protection ensures data is correctly transferred at every data transfer point within an SSD by utilizing Error Correction Code (ECC) and additional protection mechanisms, such as Cyclic Redundancy Check (CRC), to detect and rectify errors.

S.M.A.R.T.
S.M.A.R.T.

S.M.A.R.T. is a self-monitoring system that prevents risks from unscheduled downtime by monitoring and displaying critical drive information. The indicators includes the drive’s health, status, usage info and potential disk problems.

AES-256 Encryption
AES-256 Encryption

Advanced Encryption Standard (AES) is a hardware-based encryption method for converting data from an unencrypted into an encrypted format. 256 bits encryption key length makes it virtually impossible to decrypt the data without the original key.

TCG Opal 2.0
TCG Opal 2.0

Trusted Computing Group (TCG) Storage Work Group created the Opal Security Subsystem Class (SSC) as one class of security management protocol for storage devices. It is the most recognized standard for self-encrypting drives (SEDs). SMART offers TCG Opal 2.0 compliant self-encrypting SSDs incorporating AES encryption for rock-solid data protection.

Solutions

Buy Now
Sales Inquiry

Along with increasing amount of IT devices and systems installed in modern enterprises, more and more data is generated and transported everyday between physical equipment and virtual spaces, like the cloud. In order to efficiently and effectively store and manage these quantities of data, it’s becoming necessary to build a data infrastructure that can accommodate in-house data centers or that can be outsourced to cloud service providers. Whether the data infrastructure is internal or external, the main purpose is to gather process and store the data under stable and secure conditions to ensure uninterrupted operation for the enterprises.

Accelerated AI and ML workloads often require high bandwidth memory to keep up with the massive amounts of data being processed. There's a need for memory architectures that can deliver higher bandwidth to match the computational capabilities of modern accelerators. This could involve innovations in DRAM design, such as wider memory buses, faster memory interfaces, or the integration of high-bandwidth memory (HBM) technologies.

From small industrial components deployed in automation systems to large equipment used for oil drilling, project operations are asked to provide precise instructions, occasionally in harsh environments. Therefore, it is critical to maintain the accuracy of data output in addition to maintaining continuous, stable operating performance.

Use of digital and video monitoring has expanded by leaps and bounds, and has become more sophisticated for transmitting digital signals. Monitoring systems are now expected to provide megapixel quality on a 24/7 basis, whether it’s for safety, personal or business protection, crime prevention, or for other types of content analysis such as facial analysis and streaming data. When not transmitting recorded images by digital signal, the surveillance system in the analog setting functions as a monitoring tool for safety concerns. In either mode of operation, SMART Modular offers a variety of storage solutions for high-performance monitoring needs.

With the rapid rise of IoT and IIoT, the demand for connectivity has transformed networking. Today’s networks are scaling at an exponential rate, processing huge amounts of data that are stored for analysis. Reliable, proven memory is vital to ensure the hyper-fast transmission of all that data, as well as storage of the data exchanged between edge devices and network hubs. Whether the scale of network is between two locations or built for thousands of connected devices in different places around the world, there will be huge amounts of data constantly being processed whenever the network is running. That is why the right memory solutions are so important – to ensure data will be processed quickly and stored securely regardless of the demand placed on the network.
