CXA-8F2W

Buy Now
Sales Inquiry
Product Brief

SMART’s CXA-8F2W is an 8-DIMM AIC utilizing the CXL™ standard. It’s a Type 3 PCIe Gen5 Add-In Card (AIC) consisting of eight DDR5 RDIMMs mounted on a Full Height, Half Length PCIe form factor module. It uses two x16 CXL controllers to implement two x8 CXL ports capable of a total bandwidth of 64GB/s.

Each RDIMM socket supports up to 128GB RDIMMs for a maximum memory capacity of 1TB. The CXL Controllers implement “Reliability, Availability, and Serviceability” (RAS) features, advanced analytics, as well as enhanced security features with in-band or side band (SMBus) monitoring capability.

SMART develops Type 3 (CXL.mem) memory products utilizing the CXL standard to address the industry’s need for more memory per processor core. The CXL interconnect specification allows for a significant expansion of memory form factor options in PCIe or EDSFF form factors.

Security Features:

  • CXL Link-Level Integrity and Encryption (IDE)
  • AES-256 Encrypted DDR Memory Interface
  • Firmware Authentication, Integrity Check

RAS Features:

  • Single Error Correction and Double Error Detection
  • Advance EDC
  • Memory Mirroring
  • Rank Sparing
  • Scrubbing
  • On-Demand Memory Migration
  • Temperature Monitoring and DRAM Throttling
  • Fault Isolation, Error logging and Reporting
Request Datasheet
Request Sample
Downloads

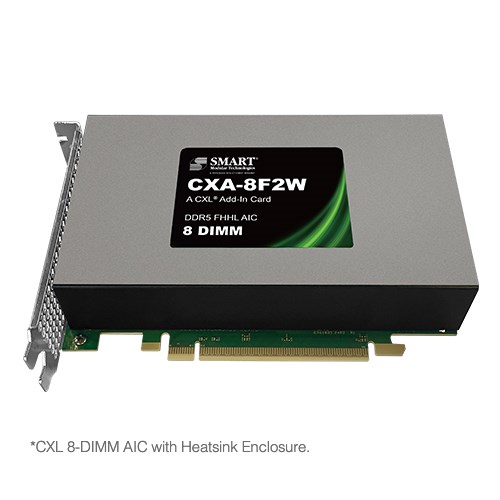

CXA-8F2W product image

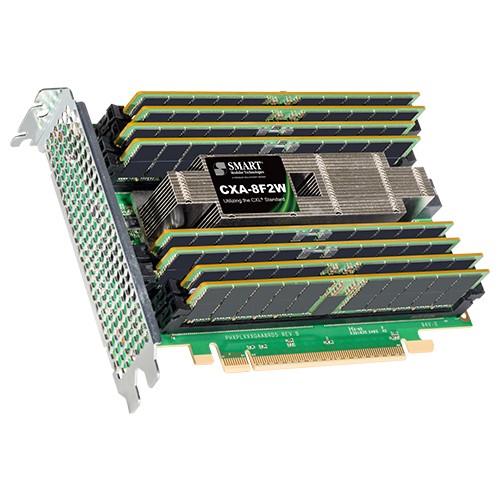

CXA-8F2W product image

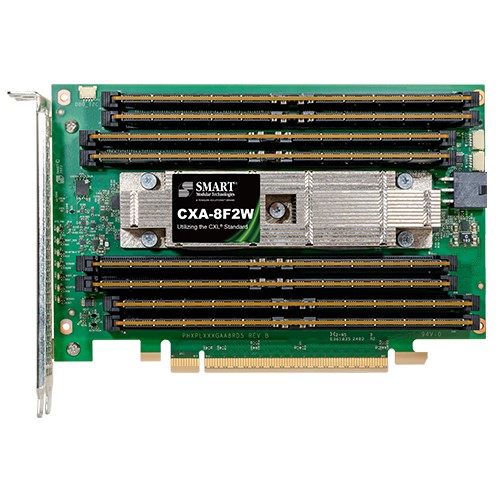

CXA-8F2W product image
No items found.
CXA-8F2W product image
CXA-8F2W product image
CXA-8F2W product image
No items found.

Ordering Information

Buy Now
Sales Inquiry

Part Number

Capacity

Note

STXPL001TAB8RD5
1TB
With 8 128GB DDR5 RDIMMs
STXPL512GAB8RD5
512GB
With 8 64GB DDR5 RDIMMs
STXPL256GAB8RD5
256GB
With 8 32GB DDR5 RDIMMs

Product Details

Buy Now
Sales Inquiry

Essentials

Technology
DDR5
Form Factor
AIC (Add In Card)
CXL Specification Compliance
2.0
Temperature
C-temp: 0˚C to 70˚C

Performance

Density
256GB 512GB 1TB
Data Throughput
64.0 GBps
DDR5 Channels x (# DPC)
2 x (1 x 80b)

Environmental

RoHS
Yes

Physical

Dimensions
39.17 (W) x 167.52 (L) x 111.15 (H) mm
