T6EN U.2 PCIe NVMe SSD

Buy Now
Sales Inquiry
Product Brief

SMART’s T6EN U.2 PCIe/NVMe Gen4x4 RUGGED™ SSDs deliver high performance, high capacity storage solutions optimized for defense, aerospace and other applications requiring durable, rugged and secure storage.

Powered by a flexible, custom flash controller, T6EN SSDs provide sustained read/write performance to meet the needs of high throughput applications such as flight data recorders and sensor data capture. T6EN SSDs are also well suited for high-reliability telemetry, surveillance, and mission critical applications.

T6EN U.2 SSDs provide capacities up to 15360GB. They are more reliable, offer superior performance, and require less power and cooling than traditional hard disk drives (HDDs).

Request Datasheet
Request Sample
Downloads

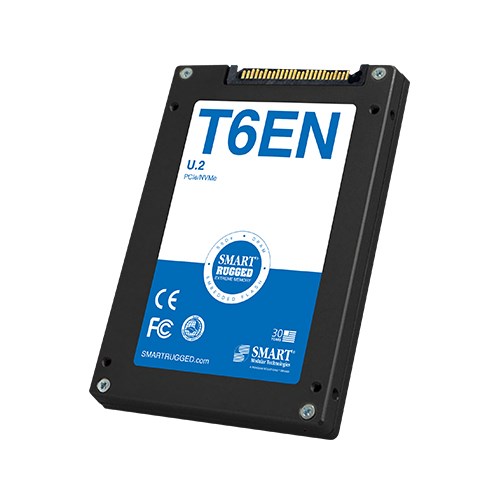

T6EN U.2 PCIe NVMe SSD product image
No items found.
T6EN U.2 PCIe NVMe SSD product image
No items found.

Ordering Information

Buy Now
Sales Inquiry

Part Number

Capacity

Note

HRCN7P15360ME001
15360GB
I Temp (-40˚C to +85˚C)
HRCN7P7680ME001
7680GB
I Temp (-40˚C to +85˚C)
HRCN7P3840HI001
3840GB
I Temp (-40˚C to +85˚C)
HRCN7P1920HI001
1920GB
I Temp (-40˚C to +85˚C)
HRCN7P0960HI001
960GB
I Temp (-40˚C to +85˚C)

Product Details

Buy Now
Sales Inquiry

Essentials

Product Series
T6EN
NAND Flash Technology
3D TLC
Interface
PCIe Gen4 x4

Performance

Sequential Read (maximum)
Up to 3500MB/s
Sequential Write (maximum)
Up to 3000MB/s
4K Random Read (maximum)
Up to 390K IOPS
4K Random Write (maximum)
Up to 55K IOPS
Capacities
960GB 1920GB 3840GB 7680GB 15360GB

Reliability

TBW
Up to 9,600 TBW (I-Temp, 15,360GB)
MTBF
> 2,000,000 hours

Environmental

Shock
50G (11 ms duration, half sine wave)
Vibration
10G (peak, 10-2000Hz)
Operating Temperature
I-temp: -40℃ to +85℃
Storage Temperature
-55℃ to +95℃
Humidity
5% to 95% non-condensing

Physical

Length
100.5mm
Width
69.85mm
Height
7mm

Technologies

Buy Now
Sales Inquiry
SafeDATA™
SafeDATA™

SafeDATA technology combines unique power loss detection and hold-up circuitries with an advanced controller firmware algorithm to flush in-flight data from volatile cache to NAND Flash memory in order to safeguard data against corruption and/or loss during the sudden power loss.

S.M.A.R.T.
S.M.A.R.T.

S.M.A.R.T. is a self-monitoring system that prevents risks from unscheduled downtime by monitoring and displaying critical drive information. The indicators includes the drive’s health, status, usage info and potential disk problems.

AES-256 Encryption
AES-256 Encryption

Advanced Encryption Standard (AES) is a hardware-based encryption method for converting data from an unencrypted into an encrypted format. 256 bits encryption key length makes it virtually impossible to decrypt the data without the original key.

TCG Opal 2.0
TCG Opal 2.0

Trusted Computing Group (TCG) Storage Work Group created the Opal Security Subsystem Class (SSC) as one class of security management protocol for storage devices. It is the most recognized standard for self-encrypting drives (SEDs). SMART offers TCG Opal 2.0 compliant self-encrypting SSDs incorporating AES encryption for rock-solid data protection.

Write Protection
Write Protection

Write Protection prevents drives from unauthorized data write via a hardware switch/pin or software command. With the write protection feature, users are guaranteed that their data cannot be over-written on the Flash device by triggering the write-protect function.

Industrial Temperature (-40°C to +85°C)
Industrial Temperature (-40°C to +85°C)

Specifically designed for harsh environments, SMART’s industrial-grade products with industrial wide-temp ICs and components ensure the highest reliability and stability in extreme operating environments.

Solutions

Buy Now
Sales Inquiry

Use of digital and video monitoring has expanded by leaps and bounds, and has become more sophisticated for transmitting digital signals. Monitoring systems are now expected to provide megapixel quality on a 24/7 basis, whether it’s for safety, personal or business protection, crime prevention, or for other types of content analysis such as facial analysis and streaming data. When not transmitting recorded images by digital signal, the surveillance system in the analog setting functions as a monitoring tool for safety concerns. In either mode of operation, SMART Modular offers a variety of storage solutions for high-performance monitoring needs.

Product Family Overview

Data flow rendering
