T5PF 2.5" SATA SSD

Buy Now
Sales Inquiry
Product Brief

SMART Modular Technologies' T5PF 2.5" SATA solid state drives (SSDs) with FIPS 140-2 compliance deliver high performance, high capacity storage solutions optimized for defense, aerospace and other applications requiring durable, rugged and secure storage. Powered by a flexible, flash controller, T5PF SSDs provide sustained read\write performance to meet the needs of high throughput applications such as flight data recorders and sensor data capture. T5PF SSDs are also well suited for high-reliability telemetry, surveillance, and mission-critical applications.

T5PF SSDs offer up to 4TB of storage using 3D TLC NAND Flash. They are more reliable, offer superior performance, and require less power and cooling than traditional hard disk drives (HDDs). Conforming to SMART's "true" industrial grade standards, they are superior to typical SSDs and HDDs in terms of ruggedness, vibration and shock resistance, and environmental resilience.

Request Datasheet
Request Sample
Downloads

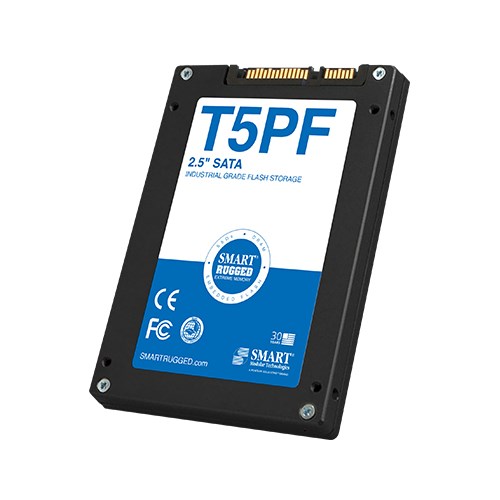

T5PF 2.5" SATA SSD product image
No items found.
T5PF 2.5" SATA SSD product image
No items found.

Ordering Information

Buy Now
Sales Inquiry

Part Number

Capacity

Note

HRHA2F3840HI001
3840GB
I-Temp (-40˚C to +85˚C)
HRHA2F1920HI001
1920GB
I-Temp (-40˚C to +85˚C)
HRHA2F0960HI001
960GB
I-Temp (-40˚C to +85˚C)
HRHA2F0480HI001
480GB
I-Temp (-40˚C to +85˚C)

Product Details

Buy Now
Sales Inquiry

Essentials

Product Series
T5PF
NAND Flash Technology
3D TLC
Interface
SATA 3.0 6Gb/s

Performance

Sequential Read (maximum)
Up to 500MB/s
Sequential Write (maximum)
Up to 470MB/s
4K Random Read (maximum)
Up to 50K IOPS
4K Random Write (maximum)
Up to 48K IOPS
Capacities
480GB 960GB 1920GB 3840GB

Reliability

TDW
Up to 2,100 TDW
MTBF
> 2,000,000 hours

Environmental

Shock
50g half-sine, 11 ms, 3 shocks along each axis, X, Y, Z in each direction
Vibration
16.4 g rms 10-2000 Hz random, 3-axes
Operating Temperature
I-temp: -40℃ to +85℃
Storage Temperature
-55℃ to +95℃
Humidity
5% to 95% non-condensing

Physical

Length
100mm
Width
69.85mm
Height
7mm

Technologies

Buy Now
Sales Inquiry
SafeDATA™
SafeDATA™

SafeDATA technology combines unique power loss detection and hold-up circuitries with an advanced controller firmware algorithm to flush in-flight data from volatile cache to NAND Flash memory in order to safeguard data against corruption and/or loss during the sudden power loss.

S.M.A.R.T.
S.M.A.R.T.

S.M.A.R.T. is a self-monitoring system that prevents risks from unscheduled downtime by monitoring and displaying critical drive information. The indicators includes the drive’s health, status, usage info and potential disk problems.

AES-256 Encryption
AES-256 Encryption

Advanced Encryption Standard (AES) is a hardware-based encryption method for converting data from an unencrypted into an encrypted format. 256 bits encryption key length makes it virtually impossible to decrypt the data without the original key.

TCG Opal 2.0
TCG Opal 2.0

Trusted Computing Group (TCG) Storage Work Group created the Opal Security Subsystem Class (SSC) as one class of security management protocol for storage devices. It is the most recognized standard for self-encrypting drives (SEDs). SMART offers TCG Opal 2.0 compliant self-encrypting SSDs incorporating AES encryption for rock-solid data protection.

Write Protection
Write Protection

Write Protection prevents drives from unauthorized data write via a hardware switch/pin or software command. With the write protection feature, users are guaranteed that their data cannot be over-written on the Flash device by triggering the write-protect function.

Solutions

Buy Now
Sales Inquiry

From small industrial components deployed in automation systems to large equipment used for oil drilling, project operations are asked to provide precise instructions, occasionally in harsh environments. Therefore, it is critical to maintain the accuracy of data output in addition to maintaining continuous, stable operating performance.

Use of digital and video monitoring has expanded by leaps and bounds, and has become more sophisticated for transmitting digital signals. Monitoring systems are now expected to provide megapixel quality on a 24/7 basis, whether it’s for safety, personal or business protection, crime prevention, or for other types of content analysis such as facial analysis and streaming data. When not transmitting recorded images by digital signal, the surveillance system in the analog setting functions as a monitoring tool for safety concerns. In either mode of operation, SMART Modular offers a variety of storage solutions for high-performance monitoring needs.
