T5E TLC 2.5" SATA SSD

Buy Now
Sales Inquiry
Product Brief

SMART's RUGGED SSD T5E products are the ideal solution for ground and air defense, industrial automation, transportation, medical and telecommunication applications, T5E 2.5" SATA solid state drive (SSD) combines high performance, superior reliability and data security into a single ruggedized design.

The SMART T5E SSD is designed to meet the needs of applications where temperature tolerances are as important as high performance and reliability. A robust set of diagnostic information is provided through SSD-specific S.M.A.R.T attributes which can be used to monitor the health of the drives.

Request Datasheet
Request Sample
Downloads

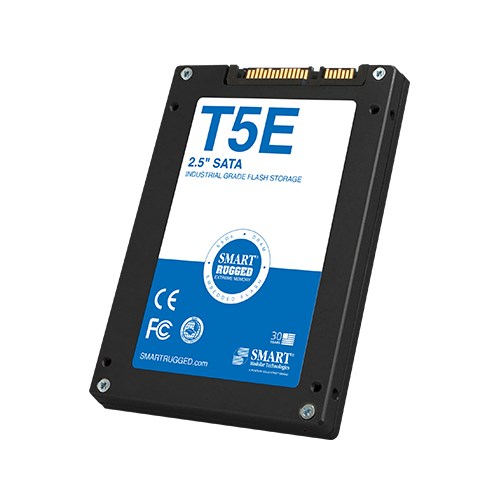

T5E TLC 2.5" SATA SSD product image
No items found.
T5E TLC 2.5" SATA SSD product image
No items found.

Ordering Information

Buy Now
Sales Inquiry

Part Number

Capacity

Note

HRCA2X3840HI001
3840GB
I Temp (-40˚C to +85˚C)
HRCA2X3840HC001
3840GB
C Temp (0˚C to +70˚C)
HRCA2X1920HI001
1920GB
I Temp (-40˚C to +85˚C)
HRCA2X1920HC001
1920GB
C Temp (0˚C to +70˚C)
HRCA2X0960HI001
960GB
I Temp (-40˚C to +85˚C)
HRCA2X0960HC001
960GB
C Temp (0˚C to +70˚C)
HRCA2X0480HI001
480GB
I Temp (-40˚C to +85˚C)
HRCA2X0480HC001
480GB
C Temp (0˚C to +70˚C)
HRCA2X0240HI001
240GB
I Temp (-40˚C to +85˚C)
HRCA2X0240HC001
240GB
C Temp (0˚C to +70˚C)
HRCA2X0120HI001
120GB
I Temp (-40˚C to +85˚C)
HRCA2X0120HC001
120GB
C Temp (0˚C to +70˚C)
HRCA2X3840HICC1
3840GB
I Temp (-40˚C to +85˚C) / Coating
HRCA2X3840HCCC1
3840GB
C Temp (0˚C to +70˚C) / Coating
HRCA2X1920HICC1
1920GB
I Temp (-40˚C to +85˚C) / Coating
HRCA2X1920HCCC1
1920GB
C Temp (0˚C to +70˚C) / Coating
HRCA2X0960HICC1
960GB
I Temp (-40˚C to +85˚C) / Coating
HRCA2X0960HCCC1
960GB
C Temp (0˚C to +70˚C) / Coating
HRCA2X0480HICC1
480GB
I Temp (-40˚C to +85˚C) / Coating
HRCA2X0480HCCC1
480GB
C Temp (0˚C to +70˚C) / Coating
HRCA2X0240HICC1
240GB
I Temp (-40˚C to +85˚C) / Coating
HRCA2X0240HCCC1
240GB
C Temp (0˚C to +70˚C) / Coating
HRCA2X0120HICC1
120GB
I Temp (-40˚C to +85˚C) / Coating
HRCA2X0120HCCC1
120GB
C Temp (0˚C to +70˚C) / Coating
HRCA2P3840HI001
3840GB
I Temp (-40˚C to +85˚C) / Secure TCG Opal
HRCA2P3840HC001
3840GB
C Temp (0˚C to +70˚C) / Secure TCG Opal
HRCA2P1920HI001
1920GB
I Temp (-40˚C to +85˚C) / Secure TCG Opal
HRCA2P1920HC001
1920GB
C Temp (0˚C to +70˚C) / Secure TCG Opal
HRCA2P0960HI001
960GB
I Temp (-40˚C to +85˚C) / Secure TCG Opal
HRCA2P0960HC001
960GB
C Temp (0˚C to +70˚C) / Secure TCG Opal
HRCA2P0480HI001
480GB
I Temp (-40˚C to +85˚C) / Secure TCG Opal
HRCA2P0480HC001
480GB
C Temp (0˚C to +70˚C) / Secure TCG Opal
HRCA2P0240HI001
240GB
I Temp (-40˚C to +85˚C) / Secure TCG Opal
HRCA2P0240HC001
240GB
C Temp (0˚C to +70˚C) / Secure TCG Opal
HRCA2P0120HI001
120GB
I Temp (-40˚C to +85˚C) / Secure TCG Opal
HRCA2P0120HC001
120GB
C Temp (0˚C to +70˚C) / Secure TCG Opal
HRCA2P3840HICC1
3840GB
I Temp (-40˚C to +85˚C) / Secure TCG Opal / Coating
HRCA2P3840HCCC1
3840GB
C Temp (0˚C to +70˚C) / Secure TCG Opal / Coating
HRCA2P1920HICC1
1920GB
I Temp (-40˚C to +85˚C) / Secure TCG Opal / Coating
HRCA2P1920HCCC1
1920GB
C Temp (0˚C to +70˚C) / Secure TCG Opal / Coating
HRCA2P0960HICC1
960GB
I Temp (-40˚C to +85˚C) / Secure TCG Opal / Coating
HRCA2P0960HCCC1
960GB
C Temp (0˚C to +70˚C) / Secure TCG Opal / Coating
HRCA2P0480HICC1
480GB
I Temp (-40˚C to +85˚C) / Secure TCG Opal / Coating
HRCA2P0480HCCC1
480GB
C Temp (0˚C to +70˚C) / Secure TCG Opal / Coating
HRCA2P0240HICC1
240GB
I Temp (-40˚C to +85˚C) / Secure TCG Opal / Coating
HRCA2P0240HCCC1
240GB
C Temp (0˚C to +70˚C) / Secure TCG Opal / Coating
HRCA2P0120HICC1
120GB
I Temp (-40˚C to +85˚C) / Secure TCG Opal / Coating
HRCA2P0120HCCC1
120GB
C Temp (0˚C to +70˚C) / Secure TCG Opal / Coating

Product Details

Buy Now
Sales Inquiry

Essentials

Product Series
T5E
NAND Flash Technology
3D TLC
Interface
SATA 3.0 6Gb/s

Performance

Sequential Read (maximum)
Up to 550MB/s
Sequential Write (maximum)
Up to 535MB/s
4K Random Read (maximum)
Up to 80K IOPS
4K Random Write (maximum)
Up to 50K IOPS
Capacities
120GB 240GB 480GB 960GB 1920GB 3840GB

Reliability

TDW
Up to 1,000 TDW
MTBF
> 2,000,000 hours

Environmental

Shock
50g half-sine, 11 ms, 3 shocks along each axis, X, Y, Z in each direction
Vibration
16.4 g rms 10-2000 Hz random, 3-axes
Operating Temperature
C-temp: 0℃ to +70℃ I-temp: -40℃ to +85℃
Storage Temperature
-55℃ to +95℃
Humidity
5% to 95% non-condensing

Physical

Length
100mm
Width
69.85mm
Height
7mm

Technologies

Buy Now
Sales Inquiry
SafeDATA™
SafeDATA™

SafeDATA technology combines unique power loss detection and hold-up circuitries with an advanced controller firmware algorithm to flush in-flight data from volatile cache to NAND Flash memory in order to safeguard data against corruption and/or loss during the sudden power loss.

Advanced Error Detection & Correction
Advanced Error Detection & Correction

SMART’s Advanced Error Detection & Correction technology reinforces the ECC (Error Code Correction) engine and utilizes RAID (Redundant Array of Independent Disks) mechanism. Data is reconstructed by the prior stored parity in other pages. The recovered data will be stored in a new block, and the prior stored block will be refreshed.

AES-256 Encryption
AES-256 Encryption

Advanced Encryption Standard (AES) is a hardware-based encryption method for converting data from an unencrypted into an encrypted format. 256 bits encryption key length makes it virtually impossible to decrypt the data without the original key.

TCG Opal 2.0
TCG Opal 2.0

Trusted Computing Group (TCG) Storage Work Group created the Opal Security Subsystem Class (SSC) as one class of security management protocol for storage devices. It is the most recognized standard for self-encrypting drives (SEDs). SMART offers TCG Opal 2.0 compliant self-encrypting SSDs incorporating AES encryption for rock-solid data protection.

Write Protection
Write Protection

Write Protection prevents drives from unauthorized data write via a hardware switch/pin or software command. With the write protection feature, users are guaranteed that their data cannot be over-written on the Flash device by triggering the write-protect function.

Secure Erase
Secure Erase

Secure Erase is an action to completely erase user’s data from the SSDs. This feature will entirely reset all the SSD storage blocks to empty and prevent any important data from leaking.

Industrial Temperature (-40°C to +85°C)
Industrial Temperature (-40°C to +85°C)

Specifically designed for harsh environments, SMART’s industrial-grade products with industrial wide-temp ICs and components ensure the highest reliability and stability in extreme operating environments.

Conformal Coating
Conformal Coating

As industrial devices have to survive exposure to harsh environments, conformal coating improves product ruggedness when applied on the module surface area. It enhances product reliability and safeguards against damage from dust, high humidity, salt water air, solvents, chemicals and other harsh materials.

Solutions

Buy Now
Sales Inquiry

From small industrial components deployed in automation systems to large equipment used for oil drilling, project operations are asked to provide precise instructions, occasionally in harsh environments. Therefore, it is critical to maintain the accuracy of data output in addition to maintaining continuous, stable operating performance.

With the rapid rise of IoT and IIoT, the demand for connectivity has transformed networking. Today’s networks are scaling at an exponential rate, processing huge amounts of data that are stored for analysis. Reliable, proven memory is vital to ensure the hyper-fast transmission of all that data, as well as storage of the data exchanged between edge devices and network hubs. Whether the scale of network is between two locations or built for thousands of connected devices in different places around the world, there will be huge amounts of data constantly being processed whenever the network is running. That is why the right memory solutions are so important – to ensure data will be processed quickly and stored securely regardless of the demand placed on the network.
