RU150e | USB 2.0 | eUSB

Buy Now
Sales Inquiry
Product Brief

SMART’s DuraFlash RU150e USB 2.0 eUSB Flash Drive is designed as the main boot and storage device in embedded systems. The eUSB’s small form factor, lower power consumption, and fast access times, offer distinct technical advantages over more traditional mass storage devices.

Utilizing the USB interface, eUSB products are easily integrated into host systems without any special BIOS modifications or additional device drivers. SMART's RU150e USB 2.0 eUSB Flash Drives provide reliability by incorporating onboard error detection and correction. Static and dynamic Wear-Leveling algorithms also help to produce reliable operation over product life cycles.

Request Datasheet
Request Sample
Downloads

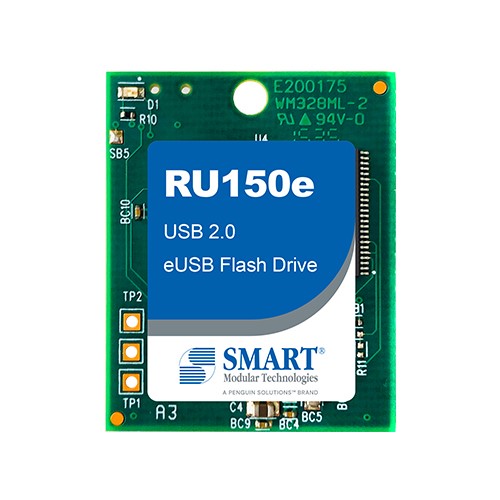

RU150e | USB 2.0 | eUSB product image
No items found.
RU150e | USB 2.0 | eUSB product image
No items found.

Ordering Information

Buy Now
Sales Inquiry

Part Number

Capacity

Note

SPEU52M032GQDUC2
32GB
C-Temp (0˚C to +70˚C) / 2mm Connector
SPEU32M032GQDUC2
32GB
C-Temp (0˚C to +70˚C) / 2mm Connector
SPEU52M032GQDUI2
32GB
I-temp (-40℃ to +85℃) / 2mm Connector
SPEU32M032GQDUI2
32GB
I-temp (-40℃ to +85℃) / 2mm Connector
SPEU52M016GQCUC2
16GB
C-Temp (0˚C to +70˚C) / 2mm Connector
SPEU32M016GQCUC2
16GB
C-Temp (0˚C to +70˚C) / 2mm Connector
SPEU52M016GQCUI2
16GB
I-temp (-40℃ to +85℃) / 2mm Connector
SPEU32M016GQCUI2
16GB
I-temp (-40℃ to +85℃) / 2mm Connector
SPEU52M008GQBUC2
8GB
C-Temp (0˚C to +70˚C) / 2mm Connector
SPEU32M008GQBUC2
8GB
C-Temp (0˚C to +70˚C) / 2mm Connector
SPEU52M008GQBUI2
8GB
I-temp (-40℃ to +85℃) / 2mm Connector
SPEU32M008GQBUI2
8GB
I-temp (-40℃ to +85℃) / 2mm Connector
SPEU52M004GQAUC2
4GB
C-Temp (0˚C to +70˚C) / 2mm Connector
SPEU32M004GQAUC2
4GB
C-Temp (0˚C to +70˚C) / 2mm Connector
SPEU52M004GQAUI2
4GB
I-temp (-40℃ to +85℃) / 2mm Connector
SPEU32M004GQAUI2
4GB
I-temp (-40℃ to +85℃) / 2mm Connector
SPEU52U032GQDUC2
32GB
C-Temp (0˚C to +70˚C) / Low Profile Connector
SPEU32U032GQDUC2
32GB
C-Temp (0˚C to +70˚C) / Low Profile Connector
SPEU52U032GQDUI2
32GB
I-temp (-40℃ to +85℃) / Low Profile Connector
SPEU32U032GQDUI2
32GB
I-temp (-40℃ to +85℃) / Low Profile Connector
SPEU52U016GQCUC2
16GB
C-Temp (0˚C to +70˚C) / Low Profile Connector
SPEU32U016GQCUC2
16GB
C-Temp (0˚C to +70˚C) / Low Profile Connector
SPEU52U016GQCUI2
16GB
I-temp (-40℃ to +85℃) / Low Profile Connector
SPEU32U016GQCUI2
16GB
I-temp (-40℃ to +85℃) / Low Profile Connector
SPEU52U008GQBUC2
8GB
C-Temp (0˚C to +70˚C) / Low Profile Connector
SPEU32U008GQBUC2
8GB
C-Temp (0˚C to +70˚C) / Low Profile Connector
SPEU52U008GQBUI2
8GB
I-temp (-40℃ to +85℃) / Low Profile Connector
SPEU32U008GQBUI2
8GB
I-temp (-40℃ to +85℃) / Low Profile Connector
SPEU52U004GQAUC2
4GB
C-Temp (0˚C to +70˚C) / Low Profile Connector
SPEU32U004GQAUC2
4GB
C-Temp (0˚C to +70˚C) / Low Profile Connector
SPEU52U004GQAUI2
4GB
I-temp (-40℃ to +85℃) / Low Profile Connector
SPEU32U004GQAUI2
4GB
I-temp (-40℃ to +85℃) / Low Profile Connector
SPEU52L032GQDUC2
32GB
C-Temp (0˚C to +70˚C) / STD Profile Connector
SPEU52L032GQDUI2
32GB
I-temp (-40℃ to +85℃) / STD Profile Connector
SPEU52L016GQCUC2
16GB
C-Temp (0˚C to +70˚C) / STD Profile Connector
SPEU52L016GQCUI2
16GB
I-temp (-40℃ to +85℃) / STD Profile Connector
SPEU52L008GQBUC2
8GB
C-Temp (0˚C to +70˚C) / STD Profile Connector
SPEU52L008GQBUI2
8GB
I-temp (-40℃ to +85℃) / STD Profile Connector
SPEU52L004GQAUC2
4GB
C-Temp (0˚C to +70˚C) / STD Profile Connector
SPEU52L004GQAUI2
4GB
I-temp (-40℃ to +85℃) / STD Profile Connector

Product Details

Buy Now
Sales Inquiry

Essentials

Product Series
RU150e
NAND Flash Technology
SLC
Interface
USB 2.0

Performance

Sequential Read (maximum)
Up to 35MB/s
Sequential Write (maximum)
Up to 27MB/s
Capacities
4GB 8GB 16GB 32GB

Reliability

TBW
4GB: 160TBW 8GB: 320TBW 16GB: 640TBW 32GB: 1280TBW (JEDEC® Client Workload)
MTBF
>3,900,000 hours

Environmental

Shock
200 g, 2 msec, 1 shock along each axis, X, Y, and Z
Vibration
1.04g rms, 2 Hz to 200 Hz, 10 minutes each 3 axes
Operating Temperature
C-temp: 0℃ to +70℃ I-temp: -40℃ to +85℃
Storage Temperature
-40℃ to +85℃
Humidity
40℃, Operation: 90% RH, Storage: 93% RH

Physical

Length
36.9mm
Width
26.6mm
Height
U: Pin pitch 2.54mm, H: 7.50mm L: Pin pitch 2.54mm, H: 9.78mm M: Pin pitch 2.00mm, H: 3.68mm

Technologies

Buy Now
Sales Inquiry
Advanced Error Detection & Correction
Advanced Error Detection & Correction

SMART’s Advanced Error Detection & Correction technology reinforces the ECC (Error Code Correction) engine and utilizes RAID (Redundant Array of Independent Disks) mechanism. Data is reconstructed by the prior stored parity in other pages. The recovered data will be stored in a new block, and the prior stored block will be refreshed.

Wear-Leveling
Wear-Leveling

Wear-Leveling refers to the practice of ensuring certain NAND blocks aren’t written and erased more often than others. By preventing the overuse of particular blocks which could lead to device failure or data loss, Wear-Leveling therefore improves the life expectancy and endurance of Flash products.

Garbage Collection
Garbage Collection

Flash-based storage devices are different in the way they deal with previously deleted data compared to traditional disks. Data must be erased first before new data can be written to the same block in SSDs. Garbage Collection copies in-use data to a new block, and then deletes all data from the old one.

Over-Provisioning
Over-Provisioning

Over-Provisioning is a technology where a certain portion of the physical capacity of the memory is reserved for carrying out garbage collection, wear-leveling and bad block management. It effectively reduces the attribute of write amplification and extends the lifespan of an SSD.

Solutions

Buy Now
Sales Inquiry

From small industrial components deployed in automation systems to large equipment used for oil drilling, project operations are asked to provide precise instructions, occasionally in harsh environments. Therefore, it is critical to maintain the accuracy of data output in addition to maintaining continuous, stable operating performance.

Product Family Overview
