R800 | SATA | M.2 2280 SSD

Buy Now
Sales Inquiry
Product Brief

SMART’s R800 SATA M.2 2280 SSDs bring the advantages of non-volatile memory to embedded computing applications. The R800 are enterprise feature rich and reliable mass storage in a M.2 form factor which is available in industrial temperature ranges.

The R800 SATA M.2 2280 SSDs offer excellent sustained random read/write and sustained sequential read/write performance. The R800 is suitable for applications that cannot tolerate variations in performance.

Request Datasheet
Request Sample
Downloads

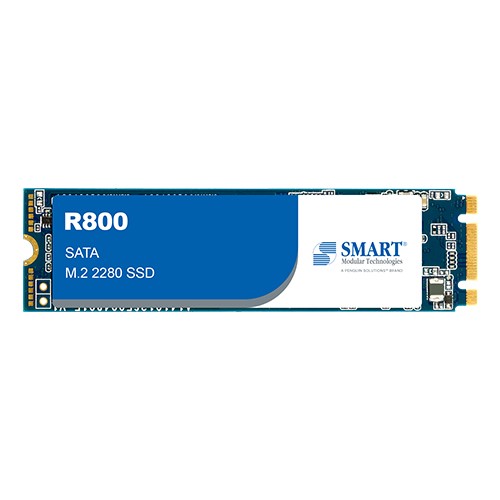

R800 | SATA | M.2 2280 SSD product image
No items found.
R800 | SATA | M.2 2280 SSD product image
No items found.

Ordering Information

Buy Now
Sales Inquiry

Part Number

Capacity

Note

SVM2S86240GRTID1
240GB
I-Temp (-40˚C to +85˚C)

Product Details

Buy Now
Sales Inquiry

Essentials

Product Series
R800
NAND Flash Technology
3D TLC
Interface
SATA 3.0 6Gb/s

Performance

Sequential Read (maximum)
Up to 560MB/s
Sequential Write (maximum)
Up to 150MB/s
4K Random Read (maximum)
Up to 56K IOPS
4K Random Write (maximum)
Up to 38K IOPS
Capacities
240GB

Reliability

TBW
240GB: 287TBW (JEDEC® Client Workload)
MTBF
> 1,500,000 hours

Environmental

Shock
1500G half-sine, 0.5 msec, 1 shock along each axis, X, Y, Z in each direction
Vibration
20G 80-2000Hz, 1.52mm 20-80Hz, 3 axis
Operating temperature
I-temp: -40℃ to +85℃
Storage Temperature
-40℃ to +85℃
Humidity
40℃, Operation: 90% RH, Storage: 93% RH

Physical

Length
80mm
Width
22mm
Height
3.5mm

Technologies

Buy Now
Sales Inquiry
Advanced Error Detection & Correction
Advanced Error Detection & Correction

SMART’s Advanced Error Detection & Correction technology reinforces the ECC (Error Code Correction) engine and utilizes RAID (Redundant Array of Independent Disks) mechanism. Data is reconstructed by the prior stored parity in other pages. The recovered data will be stored in a new block, and the prior stored block will be refreshed.

End-to-End Data Protection
End-to-End Data Protection

End-to-End Protection ensures data is correctly transferred at every data transfer point within an SSD by utilizing Error Correction Code (ECC) and additional protection mechanisms, such as Cyclic Redundancy Check (CRC), to detect and rectify errors.

AES-256 Encryption
AES-256 Encryption

Advanced Encryption Standard (AES) is a hardware-based encryption method for converting data from an unencrypted into an encrypted format. 256 bits encryption key length makes it virtually impossible to decrypt the data without the original key.

TCG Opal 2.0
TCG Opal 2.0

Trusted Computing Group (TCG) Storage Work Group created the Opal Security Subsystem Class (SSC) as one class of security management protocol for storage devices. It is the most recognized standard for self-encrypting drives (SEDs). SMART offers TCG Opal 2.0 compliant self-encrypting SSDs incorporating AES encryption for rock-solid data protection.

Solutions

Buy Now
Sales Inquiry

High Performance Computing (HPC) represents a leading solution being used to model and understand complex issues such as weather, agriculture, and space. HPC applications require the ability to process data and perform complex calculations at high speeds in limited timeframes. For applications such as AI machine/deep learning, data analysis, or medical research, HPC can process massive amount of data in real time. As HPC increases, so will the demands for high performing and reliable memory to deliver on expectations.

Use of digital and video monitoring has expanded by leaps and bounds, and has become more sophisticated for transmitting digital signals. Monitoring systems are now expected to provide megapixel quality on a 24/7 basis, whether it’s for safety, personal or business protection, crime prevention, or for other types of content analysis such as facial analysis and streaming data. When not transmitting recorded images by digital signal, the surveillance system in the analog setting functions as a monitoring tool for safety concerns. In either mode of operation, SMART Modular offers a variety of storage solutions for high-performance monitoring needs.
