MP3000 | PCIe NVMe | M.2 22110 SSD

Buy Now
Sales Inquiry
Product Brief

SMART’s MP3000 PCIe NVMe M.2 22110 SSDs incorporate the latest generation 3D NAND-technology to deliver high performance with endurance up to one drive writes per day (1 DWPD) for five years. The MP3000 SSDs offer better cost per bit over previous 64-layer and 96-layer NAND generations without sacrificing performance and reliability.

SMART’s MP3000 SSDs feature a PCIe Gen4 x4 interface and are compliant to NVMe 1.4 specification. The increased bandwidth offered by PCIe 4.0 improves the efficiency of performing workloads. They support TCG Opal 2.0 as standard, and are easily integrated into a host system without any BIOS modifications or additional drivers. The MP3000 products incorporate on-board error detection and correction, and static wear-leveling algorithms to provide reliable operation over the product life cycle.

Engineered with advanced SEU mitigation technology, SMART's MP3000 PCIe NVMe SSDs deliver exceptional reliability and performance, for the most demanding environments.

Request Datasheet
Request Sample
Downloads

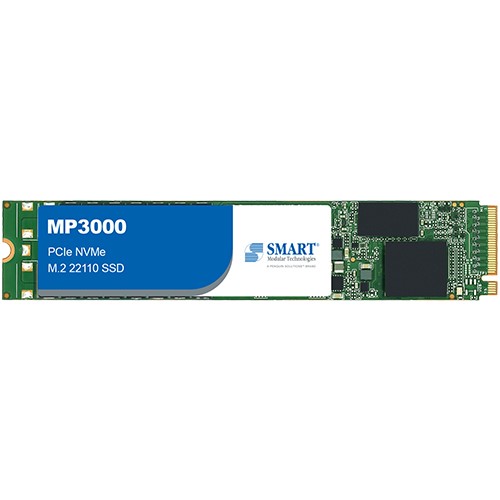

MP3000 | PCIe NVMe | M.2 22110 SSD product image
No items found.
MP3000 | PCIe NVMe | M.2 22110 SSD product image
No items found.

Ordering Information

Buy Now
Sales Inquiry

Part Number

Capacity

Note

SRMP11920F1N2AC4
1920GB
C-temp (0˚C to +70˚C)
SRMP11920F2N2AC4
1920GB
I-temp (-40˚C to +85˚C)
SRMP1960GF1N2AC4
960GB
C-temp (0˚C to +70˚C)
SRMP1960GF2N2AC4
960GB
I-temp (-40˚C to +85˚C)
SRMP1480GF1N2AC4
480GB
C-temp (0˚C to +70˚C)
SRMP1480GF2N2AC4
480GB
I-temp (-40˚C to +85˚C)
SRMP1240GF1N2AC4
240GB
C-temp (0˚C to +70˚C)
SRMP1240GF2N2AC4
240GB
I-temp (-40˚C to +85˚C)

Product Details

Buy Now
Sales Inquiry

Essentials

Product Series
MP3000
NAND Flash Technology
eTLC
Interface
PCIe Gen4 x4 NVMe 1.4

Performance

Sequential Read (maximum)
Up to 3600MB/s
Sequential Write (maximum)
Up to 2900MB/s
4K Random Read (maximum)
Up to 410K IOPS
4K Random Write (maximum)
Up to 305K IOPS
Capacities
240GB 480GB 960GB 1920GB

Reliability

TBW
240GB: 646TBW 480GB: 1292TBW 960GB: 2585TBW 1920GB: 5170TBW (JEDEC® Enterprise Workload)
MTBF
> 2,000,000 hours
DWPD
1.4

Environmental

Shock
1500G half-sine, 0.5 msec, 1 shock along each axis, X, Y, Z in each direction
Vibration
20G 80-2000Hz, 1.52mm 20-80Hz, 3 axis
Operating temperature
C-temp: 0℃ to +70℃ I-temp: -40℃ to +85℃
Storage Temperature
-40℃ to +85℃
Humidity
40℃, Operation: 90% RH, Storage: 93% RH

Physical

Length
110mm
Width
22mm
Height
3.73mm

Technologies

Buy Now
Sales Inquiry
Advanced Firmware for Customized Requests
Advanced Firmware for Customized Requests

SMART proprietary firmware architecture forms the basis for innovative and cost-effective SSD products to meet customers’ unique needs. NVMSentry provides the full package of advanced firmware features for specific customization requirements and optimized product performance.

SafeDATA™
SafeDATA™

SafeDATA technology combines unique power loss detection and hold-up circuitries with an advanced controller firmware algorithm to flush in-flight data from volatile cache to NAND Flash memory in order to safeguard data against corruption and/or loss during the sudden power loss.

SEU Mitigation
SEU Mitigation

A Single Event Upset (SEU) is an inadvertent change in bit status occurring in a digital system when a high energy neutron or alpha particle randomly strikes causing a memory bit to flip states. These high-energy particles can originate from terrestrial or extra-terrestrial sources such as cosmic rays.

Advanced Error Detection & Correction
Advanced Error Detection & Correction

SMART’s Advanced Error Detection & Correction technology reinforces the ECC (Error Code Correction) engine and utilizes RAID (Redundant Array of Independent Disks) mechanism. Data is reconstructed by the prior stored parity in other pages. The recovered data will be stored in a new block, and the prior stored block will be refreshed.

End-to-End Data Protection
End-to-End Data Protection

End-to-End Protection ensures data is correctly transferred at every data transfer point within an SSD by utilizing Error Correction Code (ECC) and additional protection mechanisms, such as Cyclic Redundancy Check (CRC), to detect and rectify errors.

S.M.A.R.T.
S.M.A.R.T.

S.M.A.R.T. is a self-monitoring system that prevents risks from unscheduled downtime by monitoring and displaying critical drive information. The indicators includes the drive’s health, status, usage info and potential disk problems.

AES-256 Encryption
AES-256 Encryption

Advanced Encryption Standard (AES) is a hardware-based encryption method for converting data from an unencrypted into an encrypted format. 256 bits encryption key length makes it virtually impossible to decrypt the data without the original key.

TCG Opal 2.0
TCG Opal 2.0

Trusted Computing Group (TCG) Storage Work Group created the Opal Security Subsystem Class (SSC) as one class of security management protocol for storage devices. It is the most recognized standard for self-encrypting drives (SEDs). SMART offers TCG Opal 2.0 compliant self-encrypting SSDs incorporating AES encryption for rock-solid data protection.

Solutions

Buy Now
Sales Inquiry

Along with increasing amount of IT devices and systems installed in modern enterprises, more and more data is generated and transported everyday between physical equipment and virtual spaces, like the cloud. In order to efficiently and effectively store and manage these quantities of data, it’s becoming necessary to build a data infrastructure that can accommodate in-house data centers or that can be outsourced to cloud service providers. Whether the data infrastructure is internal or external, the main purpose is to gather process and store the data under stable and secure conditions to ensure uninterrupted operation for the enterprises.

Whether it’s a mid-size health insurance company or a large-scale e-commerce service provider, storage servers play an important role in terms of data management for any business operation. Along with the increasing amounts of data generated and transported through network connections, it’s crucial to efficiently process and store the data, while enabling data access, yet maintaining security. Whatever the use or data applications, storage servers can are used where a large amount of data is transmitted, gathered and processed for analysis and business operations.

Accelerated AI and ML workloads often require high bandwidth memory to keep up with the massive amounts of data being processed. There's a need for memory architectures that can deliver higher bandwidth to match the computational capabilities of modern accelerators. This could involve innovations in DRAM design, such as wider memory buses, faster memory interfaces, or the integration of high-bandwidth memory (HBM) technologies.

High Performance Computing (HPC) represents a leading solution being used to model and understand complex issues such as weather, agriculture, and space. HPC applications require the ability to process data and perform complex calculations at high speeds in limited timeframes. For applications such as AI machine/deep learning, data analysis, or medical research, HPC can process massive amount of data in real time. As HPC increases, so will the demands for high performing and reliable memory to deliver on expectations.

With the rapid rise of IoT and IIoT, the demand for connectivity has transformed networking. Today’s networks are scaling at an exponential rate, processing huge amounts of data that are stored for analysis. Reliable, proven memory is vital to ensure the hyper-fast transmission of all that data, as well as storage of the data exchanged between edge devices and network hubs. Whether the scale of network is between two locations or built for thousands of connected devices in different places around the world, there will be huge amounts of data constantly being processed whenever the network is running. That is why the right memory solutions are so important – to ensure data will be processed quickly and stored securely regardless of the demand placed on the network.
